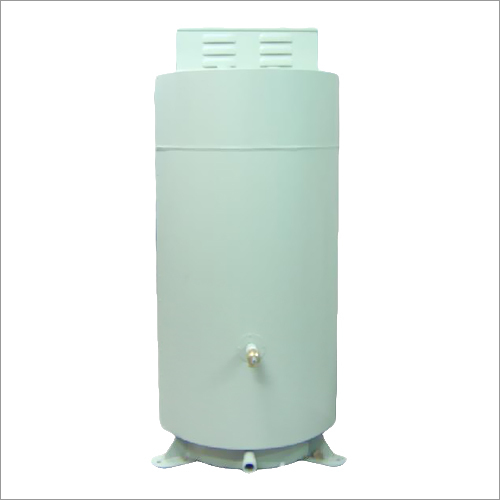

Electric Geyser

Price  Contact us for quotation

Delivery  Immediate after receipt of order

APPLICATIONS

Easy maintenance

High quality body and shell materials, master welding and fabrication, special wiring and Electrical Control Panel, there is hardly need for time of time maintenance. Simple operation, involving connection to water and Electric Main supply, can be done by even a layman (but should be done by an electrician). In the event of any problem in replacement of worn out parts, our technicians are promptly deputed at sites any where in the country.

Constructional Features

The Geysers may be either Vertical or Horizontal types as per availability of space for installation at roofs or basement of Buildings, Body and shell of water tank is generally of M.S Sheets, S.S sheet optional electrical resistance immersion type heating elements of copper tube chromplated heating elements are used. High standard internal wiring and Electrical control panel from an integral part of Generator's for safe and automatic control of Hot water temperature on continued basis.

Technical Specifications

Shell Type

Horizontal/Vertical

Material used for construction: Mild steel//stainless steel the shell can also be designed and tested as per the specified flow rate if desired by the customer.

Pressure testing

250-350 p.s.i.g. Depending on the requirement of the customer.

Insulation: 50/100mm resin bonded thick fiber glass wool with 24/32 kg/cube m or as per specified by the customer. Cladded with 0.8 aluminum sheet.

Heater specification

240v +10%. 50 cycle 3 phase A.C. Supply

Flange type

U tube in copper/stainless steel/incloy as specified by the customer.

Controls

Digital Temp. Controller for precise control.

Safety Features

• Float Switch
• Pressure relief valve
• Door switch
• Safety thermostat

Capacity

• 50 litres to 4000 liters
• Storage type construction.
